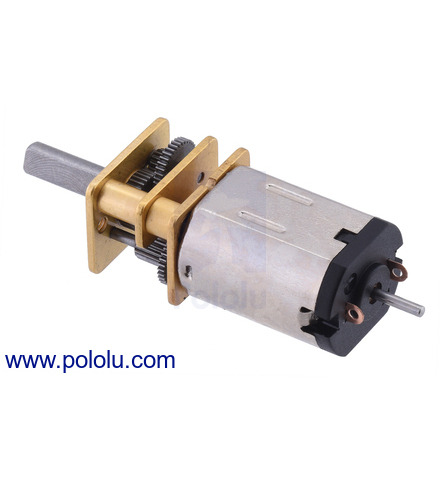

Micro Metal Gearmotors with Extended Motor Shafts
This category contains the versions of our micro metal gearmotors that have extended motor shafts, which allow for the addition of encoders like our magnetic encoder pair kit. These gearmotors are all listed in the right-most column of our full micro metal gearmotor table below.
Alternatives available with variations in these parameter(s): gear ratio motor type extended motor shaft? Select variant…
Note: Stalling or overloading gearmotors can greatly decrease their lifetimes and even result in immediate damage. The recommended upper limit for instantaneous torque is 2.5 kg-cm (35 oz-in) for the 380:1 and 1000:1 gearboxes, and 2 kg-cm (25 oz-in) for all the other gear ratios; we strongly advise keeping applied loads well under this limit. Stalls can also result in rapid (potentially on the order of seconds) thermal damage to the motor windings and brushes, especially for the versions that use high-power (HP and HPCB) motors; a general recommendation for brushed DC motor operation is 25% or less of the stall current.
Compare all products in this category
Products in category “Micro Metal Gearmotors with Extended Motor Shafts”
| Pololu item #: 2200 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 4.995:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 2500 RPM, 50 mA | 0.05 kg⋅cm (0.7 oz⋅in), 0.36 A |
| Pololu item #: 2201 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 9.96:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 1300 RPM, 40 mA | 0.10 kg⋅cm (1.4 oz⋅in), 0.36 A |
| Pololu item #: 4781 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 15.25:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 860 RPM, 40 mA | 0.17 kg⋅cm (2.4 oz⋅in), 0.36 A |
| Pololu item #: 2202 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 29.86:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 450 RPM, 40 mA | 0.29 kg⋅cm (4.0 oz⋅in), 0.36 A |
| Pololu item #: 2203 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 51.45:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 270 RPM, 40 mA | 0.44 kg⋅cm (6.1 oz⋅in), 0.36 A |
| Pololu item #: 2209 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 75.81:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 180 RPM, 40 mA | 0.64 kg⋅cm (8.9 oz⋅in), 0.36 A |
| Pololu item #: 2204 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 100.37:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 130 RPM, 40 mA | 0.74 kg⋅cm (10 oz⋅in), 0.36 A |
| Pololu item #: 2205 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 150.58:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 90 RPM, 40 mA | 1.1 kg⋅cm (15 oz⋅in), 0.36 A |
| Pololu item #: 2206 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 210.59:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 65 RPM, 40 mA | 1.6 kg⋅cm (22 oz⋅in), 0.36 A |
| Pololu item #: 2207 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 248.98:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 54 RPM, 40 mA | 1.7 kg⋅cm (24 oz⋅in), 0.36 A |
| Pololu item #: 2208 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 297.92:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 45 RPM, 40 mA | 2.0 kg⋅cm (28 oz⋅in), 0.36 A |
| Pololu item #: 4791 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 379.17:1 metal gearbox. This version has stainless steel gearbox plates instead of the standard brass ones for increased durability and resistance to wear from radial loads. The gearmotor has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 36 RPM, 40 mA | 2.9 kg⋅cm (40 oz⋅in), 0.36 A |
| Pololu item #: 3058 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature low-power, 6 V brushed DC motor with a 986.41:1 metal gearbox, making it a great choice for applications requiring fine control at very low speeds. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft. (Note: stall torque and current specifications are theoretical values; stalling the motor will damage the gearbox.)
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 13 RPM, 40 mA | 5.5 kg⋅cm (76 oz⋅in), 0.36 A |
| Pololu item #: 2376 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 4.995:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 4400 RPM, 80 mA | 0.18 kg⋅cm (0.8 oz⋅in), 0.67 A |
| Pololu item #: 2377 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 9.96:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 2200 RPM, 70 mA | 0.11 kg⋅cm (1.5 oz⋅in), 0.67 A |
| Pololu item #: 4783 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 15.25:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 1400 RPM, 70 mA | 0.20 kg⋅cm (2.8 oz⋅in), 0.67 A |
| Pololu item #: 2378 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 29.86:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 720 RPM, 70 mA | 0.33 kg⋅cm (4.6 oz⋅in), 0.67 A |
| Pololu item #: 2379 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 51.45:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 420 RPM, 70 mA | 0.54 kg⋅cm (7.5 oz⋅in), 0.67 A |
| Pololu item #: 2380 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 75.81:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 290 RPM, 70 mA | 0.78 kg⋅cm (11 oz⋅in), 0.67 A |
| Pololu item #: 2381 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 100.37:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 220 RPM, 70 mA | 0.94 kg⋅cm (13 oz⋅in), 0.67 A |
| Pololu item #: 2382 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 150.58:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 150 RPM, 70 mA | 1.3 kg⋅cm (18 oz⋅in), 0.67 A |
| Pololu item #: 2383 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 210.59:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 100 RPM, 70 mA | 1.7 kg⋅cm (24 oz⋅in), 0.67 A |
| Pololu item #: 2384 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 248.98:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 88 RPM, 70 mA | 2.2 kg⋅cm (31 oz⋅in), 0.67 A |
| Pololu item #: 2385 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 297.92:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 73 RPM, 70 mA | 2.4 kg⋅cm (33 oz⋅in), 0.67 A |
| Pololu item #: 4793 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 379.17:1 metal gearbox. This version has stainless steel gearbox plates instead of the standard brass ones for increased durability and resistance to wear from radial loads. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 57 RPM, 70 mA | 3.6 kg⋅cm (50 oz⋅in), 0.67 A |
| Pololu item #: 3059 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature medium-power, 6 V brushed DC motor with a 986.41:1 metal gearbox, making it a great choice for applications requiring fine control at very low speeds. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft. (Note: stall torque and current specifications are theoretical values; stalling the motor will damage the gearbox.)
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 22 RPM, 70 mA | 6.7 kg⋅cm (93 oz⋅in), 0.67 A |
| Pololu item #: 2210 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 4.995:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 6100 RPM, 120 mA | 0.11 kg⋅cm (1.5 oz⋅in), 1.6 A |
| Pololu item #: 2211 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 9.96:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 3100 RPM, 100 mA | 0.22 kg⋅cm (3.0 oz⋅in), 1.6 A |
| Pololu item #: 4785 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 15.25:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 2000 RPM, 100 mA | 0.30 kg⋅cm (4.2 oz⋅in), 1.6 A |
| Pololu item #: 2212 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 29.86:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 1000 RPM, 100 mA | 0.57 kg⋅cm (7.9 oz⋅in), 1.6 A |
| Pololu item #: 2213 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 51.45:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 590 RPM, 100 mA | 0.86 kg⋅cm (12 oz⋅in), 1.6 A |
| Pololu item #: 2215 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 75.81:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 410 RPM, 100 mA | 1.3 kg⋅cm (18 oz⋅in), 1.6 A |
| Pololu item #: 2214 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 100.37:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 310 RPM, 100 mA | 1.7 kg⋅cm (24 oz⋅in), 1.6 A |
| Pololu item #: 2216 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 210.59:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 150 RPM, 100 mA | 3.0 kg⋅cm (42 oz⋅in), 1.6 A |
| Pololu item #: 2217 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 248.98:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 120 RPM, 100 mA | 3.4 kg⋅cm (47 oz⋅in), 1.6 A |
| Pololu item #: 2218 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 297.92:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 100 RPM, 100 mA | 4.0 kg⋅cm (56 oz⋅in), 1.6 A |
| Pololu item #: 4795 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 379.17:1 metal gearbox. This version has stainless steel gearbox plates instead of the standard brass ones for increased durability and resistance to wear from radial loads. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 84 RPM, 100 mA | 5.5 kg⋅cm (76 oz⋅in), 1.6 A |
| Pololu item #: 2373 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with a 986.41:1 metal gearbox, making it a great choice for applications requiring fine control at very low speeds. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft. (Note: stall torque and current specifications are theoretical values; stalling the motor will damage the gearbox.)
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 31 RPM, 100 mA | 12 kg⋅cm (170 oz⋅in), 1.6 A |
| Pololu item #: 3082 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 4.995:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 6500 RPM, 170 mA | 0.09 kg⋅cm (1.3 oz⋅in), 1.5 A |
| Pololu item #: 3071 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 9.96:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 3300 RPM, 150 mA | 0.17 kg⋅cm (2.4 oz⋅in), 1.5 A |
| Pololu item #: 4787 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 15.25:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 2100 RPM, 150 mA | 0.25 kg⋅cm (3.5 oz⋅in), 1.5 A |
| Pololu item #: 3072 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 29.86:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 1100 RPM, 150 mA | 0.45 kg⋅cm (6.2 oz⋅in), 1.5 A |
| Pololu item #: 3073 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 51.45:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 650 RPM, 150 mA | 0.74 kg⋅cm (10 oz⋅in), 1.5 A |
| Pololu item #: 3074 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 75.81:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 430 RPM, 150 mA | 1.1 kg⋅cm (15 oz⋅in), 1.5 A |
| Pololu item #: 3075 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 100.37:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 330 RPM, 150 mA | 1.6 kg⋅cm (22 oz⋅in), 1.5 A |
| Pololu item #: 3076 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 150.58:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 220 RPM, 150 mA | 2.0 kg⋅cm (28 oz⋅in), 1.5 A |
| Pololu item #: 3077 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 210.59:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 160 RPM, 150 mA | 2.8 kg⋅cm (39 oz⋅in), 1.5 A |
| Pololu item #: 3078 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 248.98:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 130 RPM, 150 mA | 3.2 kg⋅cm (44 oz⋅in), 1.5 A |
| Pololu item #: 3079 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 297.92:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 110 RPM, 150 mA | 3.4 kg⋅cm (47 oz⋅in), 1.5 A |
| Pololu item #: 4797 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 379.17:1 metal gearbox. This version has stainless steel gearbox plates instead of the standard brass ones for increased durability and resistance to wear from radial loads. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 85 RPM, 150 mA | 5.0 kg⋅cm (69 oz⋅in), 1.5 A |
| Pololu item #: 3080 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 986.41:1 metal gearbox, making it a great choice for applications requiring fine control at very low speeds. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft. (Note: stall torque and current specifications are theoretical values; stalling the motor will damage the gearbox.)
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 6 V | 33 RPM, 150 mA | 11 kg⋅cm (150 oz⋅in), 1.5 A |
| Pololu item #: 3047 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 4.995:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 6800 RPM, 100 mA | 0.09 kg⋅cm (1.3 oz⋅in), 0.75 A |
| Pololu item #: 3048 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 9.96:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 3400 RPM, 80 mA | 0.17 kg⋅cm (2.4 oz⋅in), 0.75 A |
| Pololu item #: 4789 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 15.25:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 2200 RPM, 80 mA | 0.25 kg⋅cm (3.5 oz⋅in), 0.75 A |
| Pololu item #: 3049 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 29.86:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 1100 RPM, 80 mA | 0.39 kg⋅cm (5.4 oz⋅in), 0.75 A |
| Pololu item #: 3050 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 51.45:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 650 RPM, 80 mA | 0.67 kg⋅cm (9.3 oz⋅in), 0.75 A |
| Pololu item #: 3051 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 75.81:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 450 RPM, 80 mA | 1.0 kg⋅cm (14 oz⋅in), 0.75 A |
| Pololu item #: 3052 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 100.37:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 330 RPM, 80 mA | 1.3 kg⋅cm (18 oz⋅in), 0.75 A |
| Pololu item #: 3053 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 150.58:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 220 RPM, 80 mA | 1.8 kg⋅cm (25 oz⋅in), 0.75 A |
| Pololu item #: 3054 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 210.59:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 160 RPM, 80 mA | 2.5 kg⋅cm (35 oz⋅in), 0.75 A |
| Pololu item #: 3055 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 248.98:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 130 RPM, 80 mA | 3.0 kg⋅cm (42 oz⋅in), 0.75 A |
| Pololu item #: 3056 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 297.92:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 110 RPM, 80 mA | 3.3 kg⋅cm (46 oz⋅in), 0.75 A |
| Pololu item #: 4799 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 379.17:1 metal gearbox. This version has stainless steel gearbox plates instead of the standard brass ones for increased durability and resistance to wear from radial loads. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft.
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 85 RPM, 80 mA | 5.0 kg⋅cm (69 oz⋅in), 0.75 A |
| Pololu item #: 3057 | |
| Brand: Pololu | supply outlook |
| Status: Active and Preferred | |
|
|
|
This gearmotor is a miniature high-power, 12 V brushed DC motor with long-life carbon brushes and a 986.41:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter. This version also has a 4.5 × 1 mm extended motor shaft. (Note: stall torque and current specifications are theoretical values; stalling the motor will damage the gearbox.)
Key specifications:
| voltage | no-load performance | stall extrapolation |
|---|---|---|
| 12 V | 35 RPM, 80 mA | 10 kg⋅cm (140 oz⋅in), 0.75 A |
Related products
Home | Forum | Blog | Support | Ordering Information | Wish Lists | Distributors | BIG Order Form | About | Contact
© 2001–2023 Pololu Corporation
